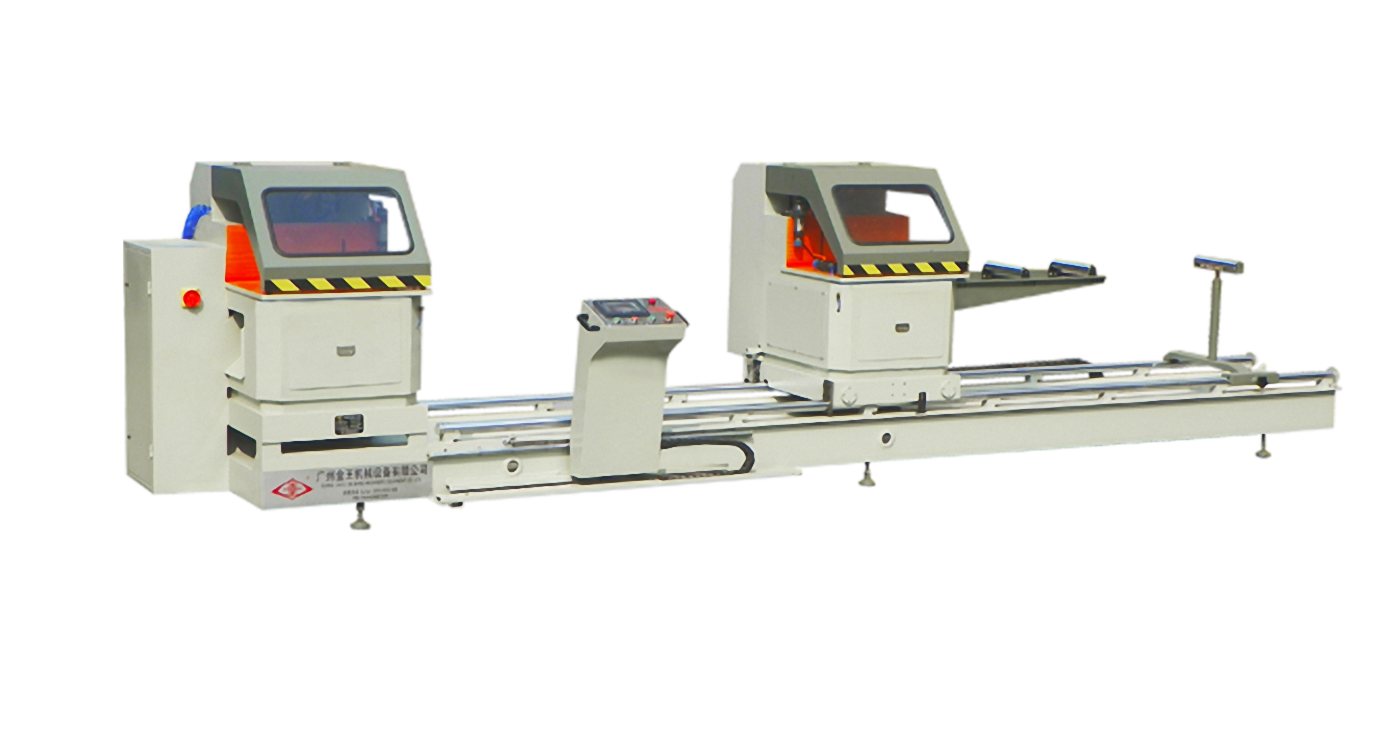

JSK500 CNC Double-Headed Cutting Machine

product details Video introduction

The Third Generation Double headed and Single Headed Cutting Machine Product Overview



Grandly Introducing our company’s Third Generation Double Headed and Single Headed Cutting Machine, the current machine undergoes breakthrough d on our second generation products’ structure (in terms of its elevating style feeding mechanical system, angle swinging – stabilizing system, and overhead feed arrangement). This achieves the greatest isolation between every posterior system and anterior saw motor area, and ideally prevents the glitches on posterior systems due to the contamination of sawdust (which is a challenging issue to all manufacturers). Furthermore, its overall structure becomes more perfected and classy. This breakthrough has reinforced our company’s firm foundation whereby our new and old customers can differentiate and decide. The current structure has already received national invention patent (patent # 201010251094.1). Other models that adopt the current structure include JSKD500 Numerical Control Ultra-short Material Double Headed Cutting Machine, JSK500 Numerical Control Double Headed Cutting Machine, JSX500 Digital Double Headed Cutting Machine, JS500 Double Headed Cutting Machine, JS400 Double Headed Cutting Machine, and JDB500 Single Headed Cutting Machine.





 Product Structure and Characteristics:

  • Original hung swinging angle system (renowned with national patent), ensuring angle switching more accurate

  • Unique swinging angle circuit and mechanical design, ensuring saw blade won’t damage the case and be damaged itself

  • Automatic numerical control system enables operation more easier and display setting more crystal clear

  • The isolation design between the posterior and anterior case has been amended, minimizing the chance of sawdust contaminating the posterior systems

  • The anterior door of the case is modified as hinged door, making it more neat, easier to remove sawdust and change saw blade







MAIN TECHNICAL PARAMETER

WORK VOLTAGE

380V.

WORK POWER

2x3Kw.

MOTOR ROTARY SPEED

3000r/min.

SAW SPECIFICATION

Ø500×Ø25.4mmx4.8mm.

CUTTING LENGTH

400~4500mm.

DIAMETER OF THE GUIDE RAIL

50mm.

45° CUTTING RANGE

105 x 250mm.

90° CUTTING RANGE

150 x 250mm.

OPERATION PRESSURE

0.6-0.8MPA

WEIGHT

1520KG.

OVERALL DIMENSION

5740 x 1046 x 1370mm.
