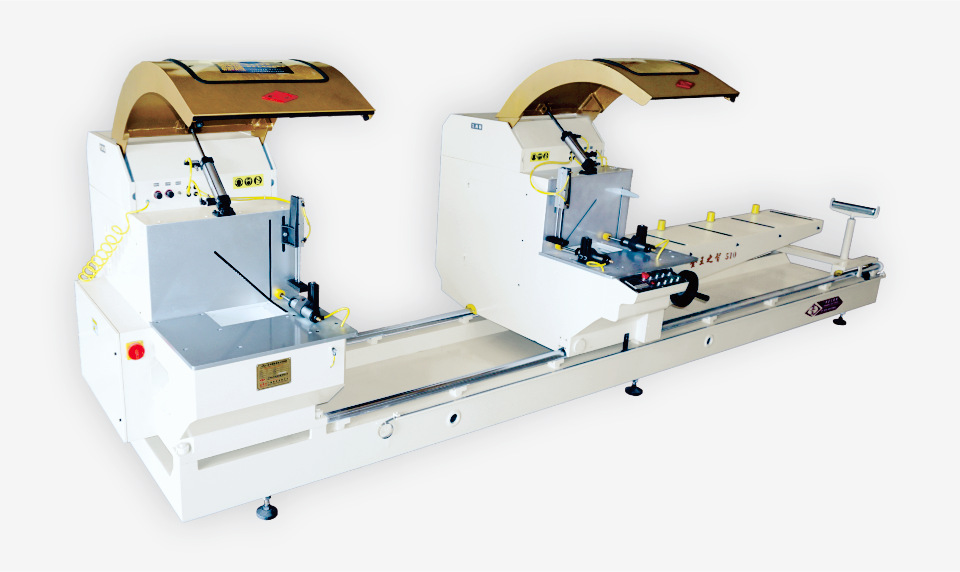

JSPV510 Digital Double Headed Cutting Machine

product details Video introduction
Another brand new member of Jin Wang products! A double headed-cutting machine with horizontal blade-entry. The JSPV500 Digital Double Headed Cutting Machine adequately takes advantage of the height of the blade’s cutting intercept, enabling the equipment to have an extensively high cutting surface which is especially suitable to cut profile that is high but narrow.

A HIGHER cut section, be able to satisfy the HIGHER cutting demand of Aluminium profile!





 Product Structure and Characteristics:



  • A precise height measuring device, the designated cutting length of the profile can be automatically calcualted once the height is being calibrated, eliminating the trifle of manual calculation

  • A horizontal blade-entry from the back, satisfying different demand of cut section

  • Mobile case comes with hand wheel control on its horizontal movement for adjusting cutting length, also comes along with digital screen to display parameter

  • An innovative angle switching mechanism renowned with national patent (PATENT #: 20160856235.X), ensuring cutting angle to be more accurately reliable

  • An unique sectional containment case design, effectively isolating sawdust from contaminating the posterior systems and affecting the cutting accuracy

  • The anterior door of the case is modified as hinged door, making it more neat, easier to remove sawdust and change saw blade



MAIN TECHNICAL PARAMETER

WORKING VOLTAGE

380V.

MOTOR POWER

2x3Kw.

MOTOR ROTARY SPEED

3200r/min.

SAW SPECIFICATION

Ø500×Ø25.4mmx4.8mm.

CUTTING LENGTH

400~4500mm.

DIAMETER OF THE GUIDE RAIL

50mm.

45° CUTTING RANGE

150 x 155mm.

90° CUTTING RANGE

150 x 220mm.

OPERATION PRESSURE

0.6-0.8MPA

WEIGHT

1800KG.

OVERALL DIMENSION

5740 x 1046 x 1370mm.
