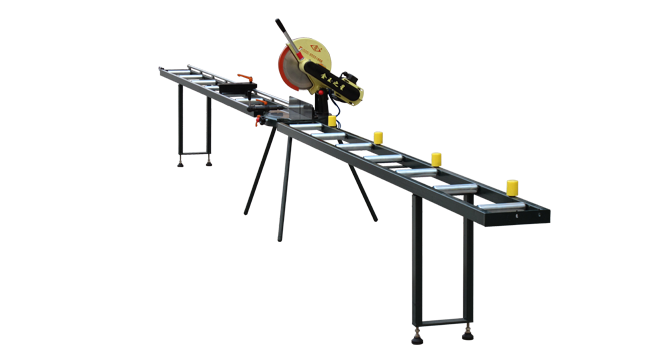

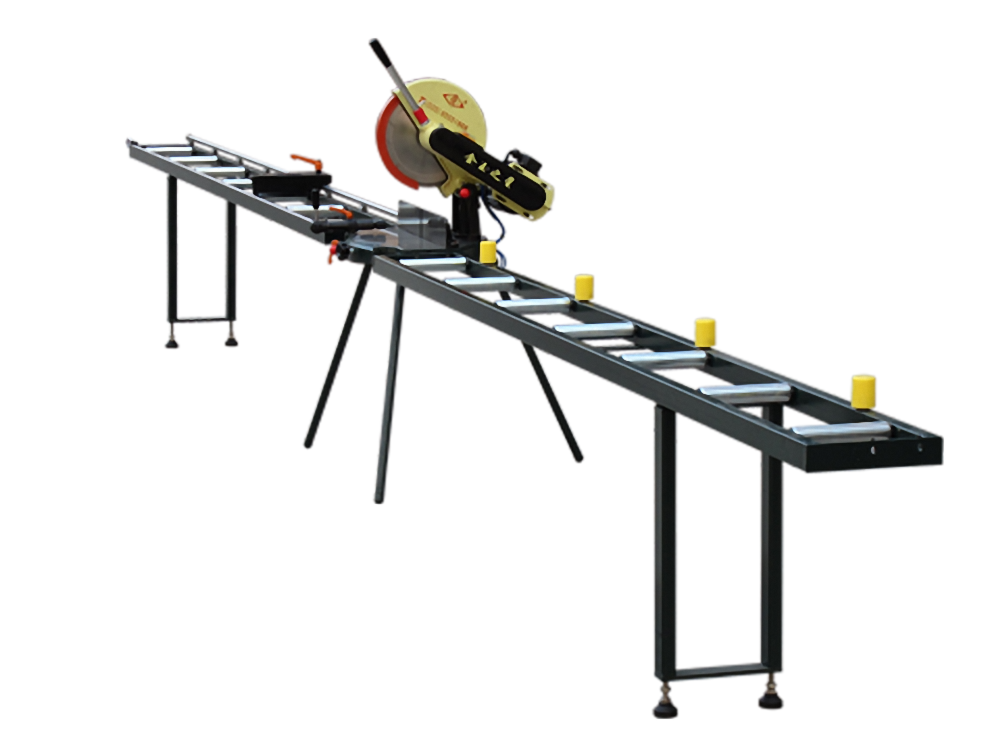

J300 Jin Wang Precision Rotary Cutting Machine

product details Video introduction

The current model is the widespread product recently developed targeting our entry-to-intermediate level customers and migrant construction workers. We developed the current product d on the composition merits we incorporated from similar products of Comall International when we collaborated with them in our early years. Due to its exquisite composition and production, it demonstrates impressive efficacy and becomes one of our company’s best-selling product. It is incomparable to those crudely made imitators. The voltage of the current product is 380V, if you are looking for a model with different voltage, please consult us directly.



Product Structure and Characteristics:

  • An distinguishing ball bearing wheel composition, ensuring swinging angle to be handily accurate and structure to be firm

  • A minimal gap between the operation platform and seating panel, in favor of remnants slightly sliding apart rather than striking them away

  • The original swinging head is supported by an exquisite bearing combination, ensuring a satisfying cutting efficacy

  • Equipped with a detachable stand whereby the operation platform can be adjusted in height, in favor of both sedentary and mobile use



The Four Grand Breakthroughs for the Third Generation Amelioration:

  • Merging the saw blade’s arresting device and operation handle, simplifying the exterior yet amplifying the beautification

  • Due to the blade’s stopping device migrated to center, the distance of the bearing shafts of the blade’s axis has been amplified; this amelioration is very critical since it increases the stability of the saw, ensures a better cutting result, and guarantee a longer longevity

  • The swinging-stabilizing device of the head has been changed from screwing lock to thumb lock, making control more convenient and avoiding it from losing

  • Supplemented with an automatic diesel spray device during cutting, ensuring the cooling spray function to be more reasonable and humanized



MAIN TECHNICAL PARAMETER

WORKING VOLTAGE

380V./240V.

MOTOR POWER

1.1Kw.

MOTOR ROTARY SPEED

3600r/min.

SAW SPECIFICATION

Ø305×Ø25.4mmx3mm.

45° CUTTING RANGE

80 x 80mm.

90° CUTTING RANGE

100 x 100mm.

WORK TABLE HEIGHT

100/700 mm.

WEIGHT

50KG.

OVERALL DIMENSION

650 x 560 x 680mm.

SPECIALIZED FEEDING RACK DIMENSION

3000 x 260 x 700mm.
